Build a Custom Chair

Get the chair that’s designed for your body — and built for your workspace. Select the options that fit your specifications on the left, and then get a quote for the BioFit seating that’s right for you!

Seat Options

K - Polyshell
T - Round Steel Stool

Backrest Options

No Back

Base Options

A / P25 - Aluminum Base
W / P28 - Wide Alum. Base
S / TUL - Steel Tubular

Performance Package Options

ISO Class 8 (Black)
ISO Class 8 (Chrome)
ISO Class 7 (Black)
ISO Class 7 (Chrome)
ISO Class 5
arrow-right

Seat Height Options

L - Low
M - Medium
H - High

Casters / Glides Options

RC - Resistance Caster
HG - High Glides

Controls Options

P - Polyshell Control

Footring Options

Affixed Footring
AFP
ATF - Adjustable Tubular Footring

Arms Options

No Arms

Upholstery Options

Black
Image not available https://d3w4sw4zvj0cmw.cloudfront.net/chairComponents/K-P-XA-X-C-BLACK-000.png & https://d3w4sw4zvj0cmw.cloudfront.net/chairComponents/S-RC-XF-M-C-000.png
Undo undo
Reset reset
Print Spec Sheet print
Share share
rotate-clockwise
rotate-counter-clockwise
ROTATE CHAIR
KXS-M-RC-P-XF-XA-ISO5>BLACK
PRO TIP: To save your spot in the builder, bookmark this page by clicking the share button above.
Image not available https://d3w4sw4zvj0cmw.cloudfront.net/chairComponents/K-P-XA-X-C-BLACK-000.png & https://d3w4sw4zvj0cmw.cloudfront.net/chairComponents/S-RC-XF-M-C-000.png
Image not available https://d3w4sw4zvj0cmw.cloudfront.net/chairComponents/K-P-XA-X-C-BLACK-000.png & https://d3w4sw4zvj0cmw.cloudfront.net/chairComponents/S-RC-XF-M-C-000.png
list Show component descriptions
Image not available https://d3w4sw4zvj0cmw.cloudfront.net/chairComponents/K-P-XA-X-C-BLACK-000.png & https://d3w4sw4zvj0cmw.cloudfront.net/chairComponents/S-RC-XF-M-C-000.png
KXS-M-RC-P-XF-XA-ISO5>BLACK
https://mychair.biofit.com/build/KXS-M-RC-P-XF-XA-ISO5%3EBLACK

Component Descriptions

close
  • Market
    Clean Room
    Precision designed and tested models featuring special components, materials, finishes and construction techniques to meet ISO classes 3 through 8.
  • Style
    Foundation
  • Upholstered
    Non-Upholstered
  • Seat
    K - Polyshell
    One-piece high-density polypropylene seat/back; measures 18.5" wide x 17" deep x 18.5" high.
  • Performance Package
    ISO Class 5
    Also known as "VUV". All chair parts are selected to assure ISO class 5 clean room compatibility.
  • Backrest
    No Back

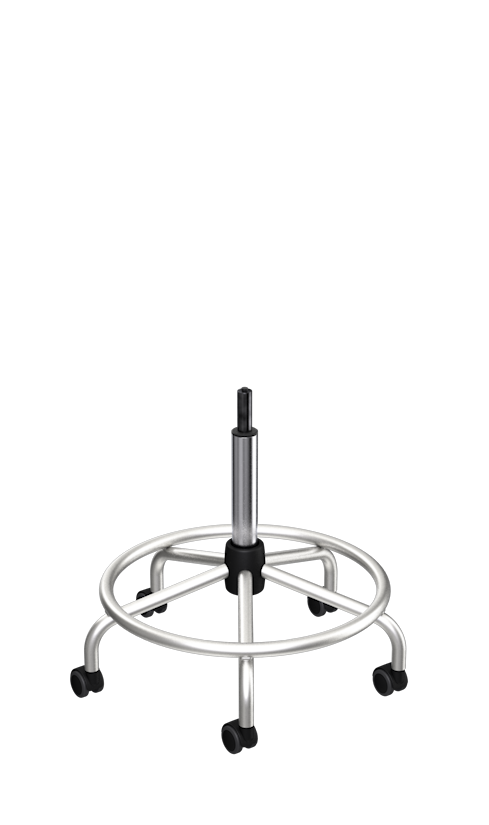

  • Base
    S / TUL - Steel Tubular
    Small, five-legged tubular base with caster-to-caster diameter of 23.0" and maximum width of 22.8". Welded 1" x 14-gauge steel tubular legs ensure uncompromised strength, withstanding test loads of 2x BIFMA strength requirements. Features standard 50mm, steel-reinforced, tapered hub (1° 26' 16" (Morse) taper) with gauge line elevation of 203mm from the caster insert plane. Steel tubular ring (tube: 1" by 18-gauge, ring: 21" dia.) welded to top of legs. A reinforced nylon insert at the end of each leg adapts the 1" x 14-gauge leg to accept a caster or glide stem. The welds at the hub are concealed by a two-piece, polypropylene cover.
  • Seat Height
    M - Medium
    For medium height work surfaces such as workbenches 32" to 39" high. Provides a range of 20" - 27".
  • Casters / Glides
    RC - Resistance Caster
    Two inches in height, with dual soft-wheels. Casters resist movement when the seat is unoccupied. Plastic collar around caster stem to match base. Standard casters have grey tread.
  • Controls
    P - Polyshell Control
    Control features Soft Touch pneumatic seat-height adjustment.
  • Footring
    Affixed Footring
    21” diameter non-adjustable 1” x 18-gauge tubular steel ring welded to top of legs, 8” above floor surface.
  • Arms
    No Arms
  • Under Seat Upholstery
    No Under Seat Upholstery
  • Memory Foam
    No Memory Foam
  • Upholstery
    Black
  • Base & Backbar
    Black / Chrome
    Black or chrome depending on performance package.
  • Series
    View All
Quality Backed by a 13-Year Warranty
Nearly all BioFit furniture products are warrantied against mechanical or structural failure due to defective material or workmanship for 13 years of normal, multishift use. Pneumatic cylinders are covered for the functional lifetime of the chair or stool. Intensive Plus chairs are warrantied for 5 years. BioFit reserves the right to recondition or replace any units covered by this warranty. Freight and any other consequential damages are not covered. All return shipments require written authorization and must be freight prepaid unless otherwise approved in writing. COM (Customer’s Own Material) upholstery materials are not covered. BioFit takes its warranty, repair and maintenance responsibilities very seriously. Efforts by unqualified personnel to perform repairs on BioFit products can result in dangerous conditions which can lead to serious bodily injury. Any attempt to modify, alter or make unauthorized repairs to BioFit products may not only seriously jeopardize the safety of the user, but will void this warranty in every respect. Disclaimer: 13-year warranty does not apply to Intensive Plus™ seating, which carries a 5-year warranty.
